double acting single piston rod hydraulic cylinder

double acting single piston rod hydraulic cylinder

    Tipo de Pago: T/T
    Terms of Trade: FOB,CFR,CIF
    Cantidad de pedido mínima: 5 Ton
    Plazo de entrega: 30 días
    Paquete: Export standard packing
    productividad: 500tons per month
    Marca: A&M
    transporte: Ocean,Land,Air
    Lugar de origen: CHINA
    Capacidad de suministro: 500tons per month
    Certificados : ISO SGS
    HS-Code: 8431390000
    Hafen: Tianjin

Descripción del producto

Product Description

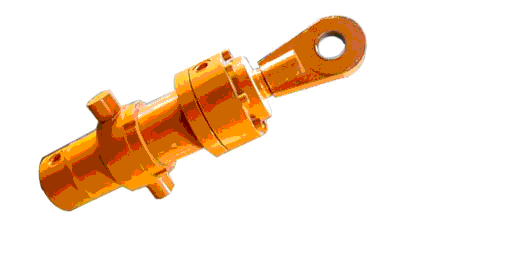

Single earring type double acting single piston rod hydraulic cylinder
This product is a double acting single piston rod, cylinder head cylinder, single ear ring mounted hydraulic cylinder.

MODEL INSTRUCTION

DG
-J
C
-E1
*
-Y3
Double acting single
piston rod hydraulic
cylinder
Piston rod:
heavy duty
Bore
diameter
Pressure level: 8-16
(MPa)
Installation: single
earring type.
Piston Rod
Connection L-
Thread E-Earring
Design
number

TECHNICAL FEATURE

Simple structure, small size, light weight, high strength, no buffer at both ends of the cylinder
SPECIFICATION
Model
Cylinder inner
diameter
(mm)
Piston area
(cm2)
thrust(N)
pressure(N)
Maximum stroke
(mm)
Rod free
side
Rod
side
16MPa
16MPa
DG-J40C-E1*
40
12.57
8.63
20160
13800
1200
DG-J50C-E1*
50
19.64
13.48
31410
21560
1200
DG-J63C-E1*
63
31.17
21.17
49870
33870
1600
DG-J80C-E1*
80
50.27
34.27
80430
54980
1600
DG-J90C-E1*
90
63.62
43.98
101790
70360
2000
DG-J100C-E1*
100
78.54
53.91
125660
86260
2000
DG-J110C-E1*
110
94.99
63.38
151980
101410
2000
DG-J1250C-E1*
125
122.72
83.13
196350
133010
2000
DG-J140C-E1*
140
153.86
103.62
246300
165870
2000
DG-J150C-E1*
150
176.72
119.97
282750
191940
2000
DG-J160C-E1*
160
200.96
136.38
321540
218210
2000
DG-J180C-E1*
180
254.34
175.84
406940
281340
2000
DG-J200C-E1*
200
314.16
219.23
502660
350770
2000

APPLICATION AREA

This series is used in vehicles, construction machinery, lifting and transportation machinery, mining machinery and so on.

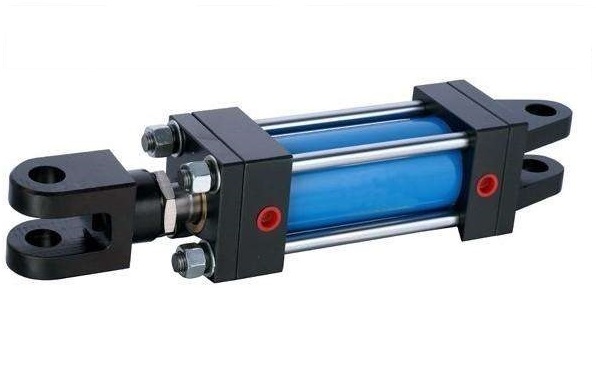

Detailed Images
Company Introduction
The company integrates research and development and manufacturing of high-end hydraulic product, and is one of the largest and competitive manufacturing enterprises for high-end hydraulic products in China. The company is recognized “high-tech enterprise”by the state. It has an enterprise technology center certified by the state. The annual production capacity reaches 3 million hydraulic components, 40,000 sets hydraulic systems and 20,000 tons of hydraulic castings. The products are widely used in construction machinery, iron and steel, metallurgy, hydraulics, environmental protection, offshore engineering, high-speed rail, wind power, new energy, etc., and have completed a number of national key projects, the products are exported to Europe, America, Asia and Africa. The company continues to strengthen the innovation drive, products and technology continue to expand to high-end manufacturing.

The company consists of four branches: Hydraulic Pump Branch, Hydraulic Valve Branch, Hydraulic System Branch and Casting Branch, there are three subsidiaries of R&D and manufacturing in Taiyuan, Changzhi, Jinan and Shanghai. They produces 3 million units of hydraulic components, 40 thousand sets of hydraulic system equipment, 35 thousand tons of hydraulic castings annually, including high-pressure piston pump, vane pump,gear pump, hydraulic valve, motor, hydraulic cylinder, hydraulic system and castings. They mainly used in engineering machinery, agricultural machinery, transportation (locomotives, rail transit, ships), petroleum machinery, metallurgical steel, coal mines, marine engineering, aerospace, water conservancy and power, machine tool industry, chemical equipment and other fields. The company has provided products for national key projects such as the Three Gorges Project, the South-to-North Water Transfer Project, the localization of metallurgical slab continuous casting and rolling production line and so on.
Product packaging
Our Advantages
The company is a state-recognized high-tech enterprise, with state-recognized hydraulic industry enterprise technology center,and has established a post-doctoral research station with strong independent technology research and product development capabilities. The company has 239 outstanding professionals in development and basic technology, process innovation research of product , including more than 60 senior technical titles. The technology center has established an open operation mode, paying attention to the organic combination of production, education and research, and has established exchanges and cooperation relations with more than 20 universities, colleges and institutes, such as Tinghua University, Beijing Aerospace University, Taiyuan University of Technology, Beijing Institute of Automation, Tianjin Institute of Construction Machinery, etc., and continue to maintain leadership in designing of high-end hydraulic product and controlling of hydraulic-electro-mechanical and other technical fields. The company participated in formulating 21 national and industrial product standards, and obtained 24 invention and practical patents, and won 66 technology progress awards and outstanding new product awards.
Why Choose Us
The company has established a complete quality management system, with the certification of informatization and industrialization "two-oriented integrated management system", and comprehensively implemented refined management to constantly improve product quality and economic benefits.

The company has established a nationwide marketing and service network, dedicated to providing customers with perfect services. We have actively promoted the internationalization strategy and established strategic partners and service agencies in Europe, the Americas, Asia and Africa.

The company upholds the core values of "integrity, innovation, leanness, excellence" and takes the revitalization of China's hydraulic industry as its responsibility to vigorously promote independent innovation and help the development of high-end equipment manufacturing industry.

A&M Manufacturing Co.Ltd.



A&M Company es una empresa conjunta chino-británica, con sede en el Reino Unido, tiene más de 30 años de experiencia en las industrias de fundición y metalurgia en general, y ha cooperado e invertido en fundición en China durante más de 20 años. Es una fundición profesional que integra el desarrollo y la producción, especializada en la producción de varias piezas de fundición de arena y fundición de precisión en hierro / acero, válvula hidráulica, bomba hidráulica, motor hidráulico, cilindro hidráulico y sistemas hidráulicos. Estas piezas de fundición son ampliamente utilizadas en la industria automotriz, vehículos ferroviarios, maquinaria de construcción, ingeniería municipal, tuberías, petroquímicos, minería, energía y otras industrias.

Actualmente, produce anualmente 2 millones de piezas de repuestos, incluidos repuestos de automóviles de todo tipo de vehículos, repuestos mecánicos de ingeniería y repuestos de material rodante ferroviario, con una capacidad de producción anual de mil millones de yuanes.

Nuestra empresa aprobó con éxito la certificación ISO9001: 2008.ISO / TS16949: 2009.ISO14001: 2008 y OHSAS18001: 2007, y obtuvo el certificado TPG de un tercero de GE.

Tenemos 7 juegos de líneas de moldeo semiautomáticas, 164 juegos de máquinas CNC y centros de mecanizado, analizador de espectro de Alemania, equipos de prueba de rayos X, 56 juegos de equipos de inspección y 11 juegos de equipos de limpieza.
